HE03 LED HIGH BAY LIGHT

Short Description:

1. 3-COLOR TEMPERATURE SWITCHABLE.
2. CREATIVE DESIGN.
3. SLIM DESIGN.
4. HIGH LUMEN EFFICIENCY.
5. ADC#12 ALUMINIUM.
6. EXCELLECT HEAT SINK.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    FAQ

    Product Tags

    Model NO. Images Specifications Product Size(cm)
    HE03-50W  aaapicture Chip Type: SMD2835  aaapicture
    Voltage: AC185-265V
    Wattage: 50W
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²
    HE03-100W  b-pic Chip Type: SMD2835

    b-pic

    Φ25.91*4.21

    Voltage: AC185-265V
    Wattage: 100W
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²
    HE03-150W  c-pic Chip Type: SMD2835 c-pic
    Φ30.08*7.69
    Voltage: AC185-265V
    Wattage: 150W
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²

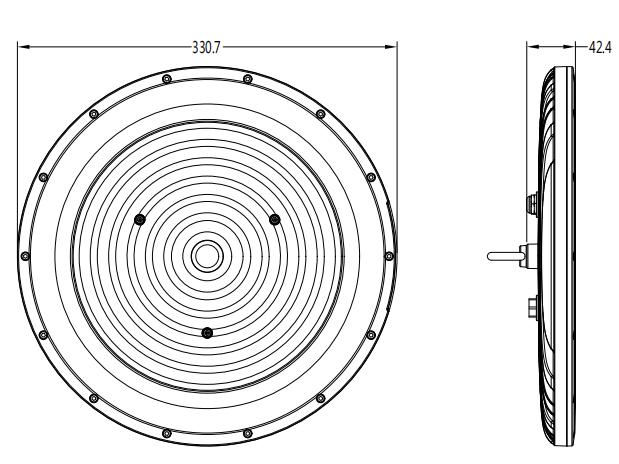

    HE03-200W  d-pic Chip Type: SMD2835 d-pic

    Φ33.07*7.67

    Voltage: AC185-265V
    Wattage: 200W
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²

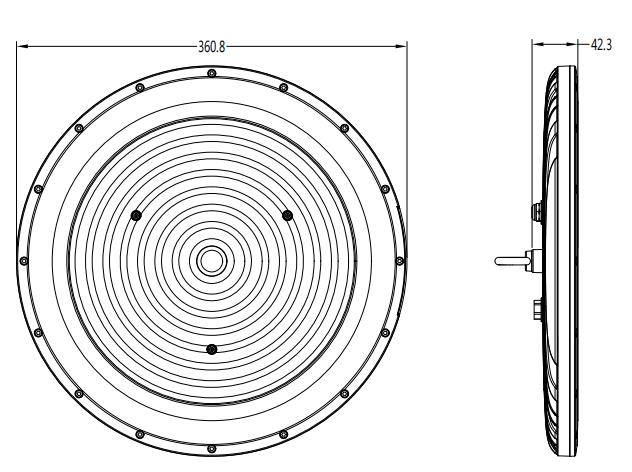

    HE03-300W  e-pic Chip Type: SMD2835 e-pic

    Φ36.08*7.66

    Voltage: AC185-265V
    Wattage: 300W *80%
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²

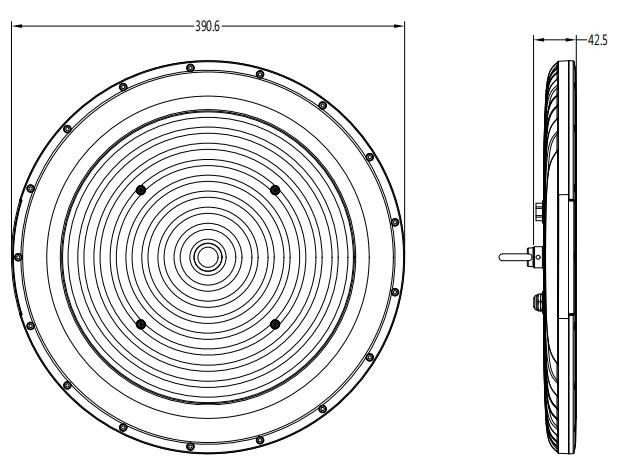

    HE03-400W  f-pic Chip Type: SMD2835 f-pic

    Φ39.06*7.67

    Voltage: AC185-265V
    Wattage: 400W *80%
    Luminous Flux: 90-100lm/w
    Lamp Viewing Angle: 90°
    Color Temp: 2700-6500K
    Cri: Ra>80
    PF: >0.9
    Material: Aluminum ADC#12 and optical lens
    Lifespan: 25.000h
    Cable length: 30cm H05RN-F 3G0.75mm²

    Applications

    1. factories, industrial production workshop, warehouse;

    2. gym, stadiums, golf courses,

    3. commercial establishments, overpasses, outdoor advertising board, landmarks;

    4. stage, yard, garden, lawn, park, plaza;

    5. supermarket, shopping mall, exhibition hall;

    6. ships, airports, subways, gas station, the train station, highway toll station, dock
    Use in any large open area can be used inside or out or inside in areas where you need to be able to wash down the room
